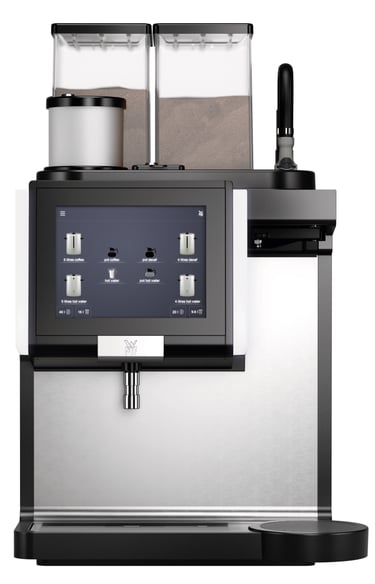

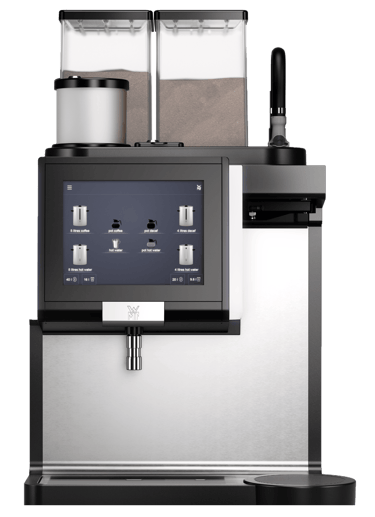

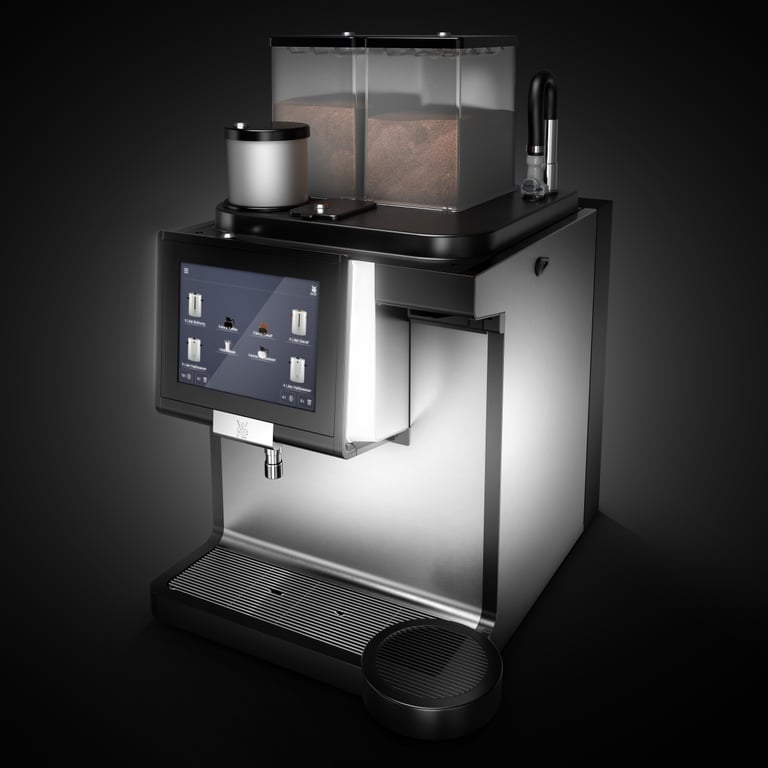

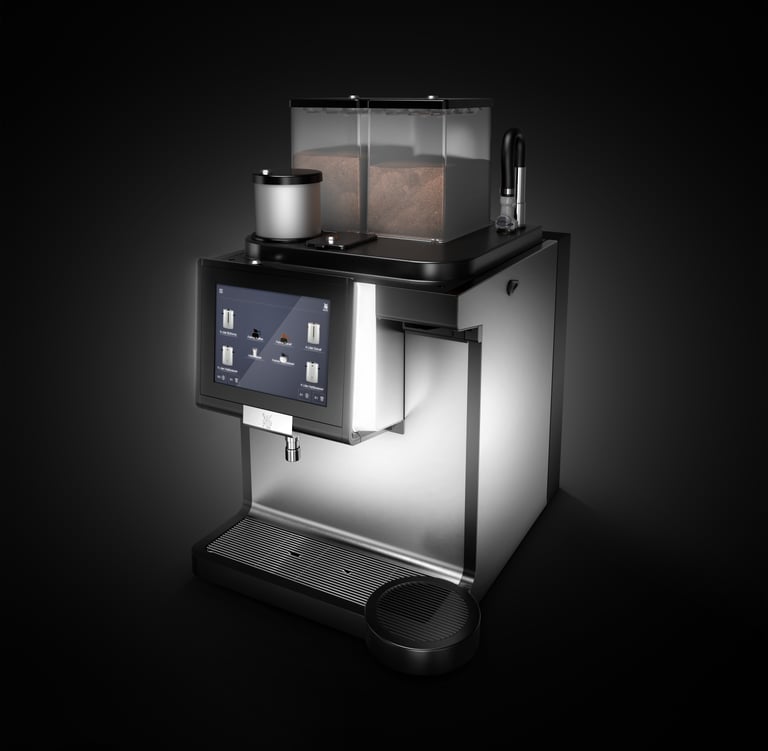

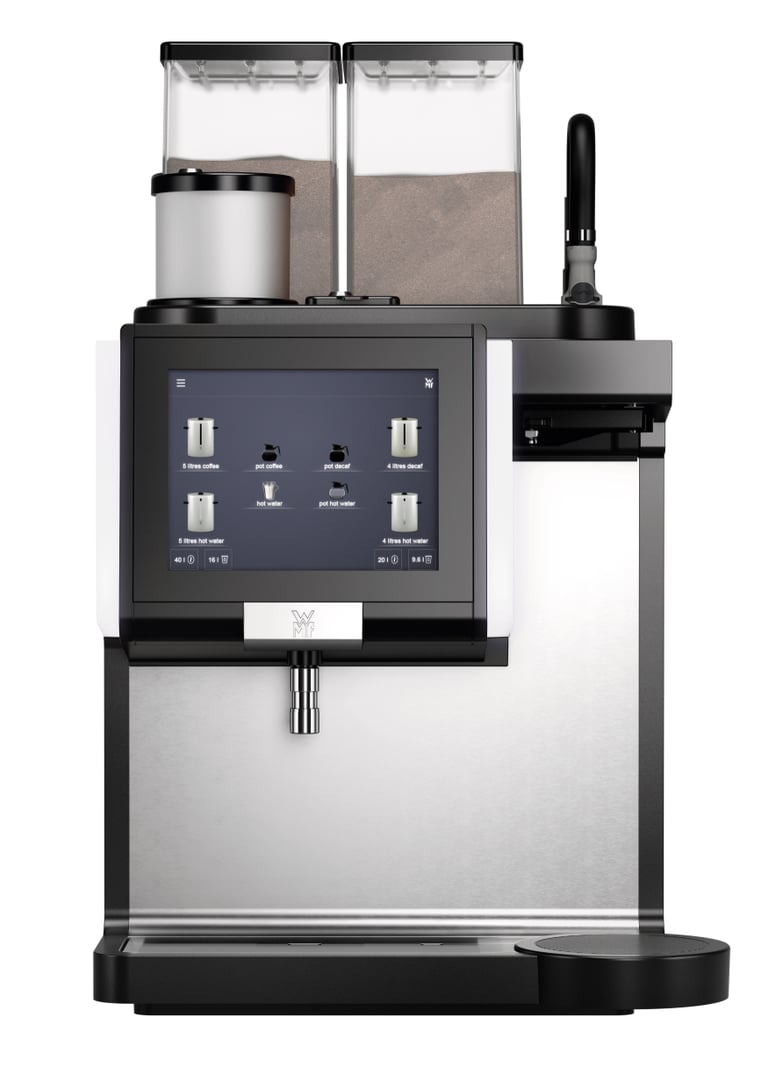

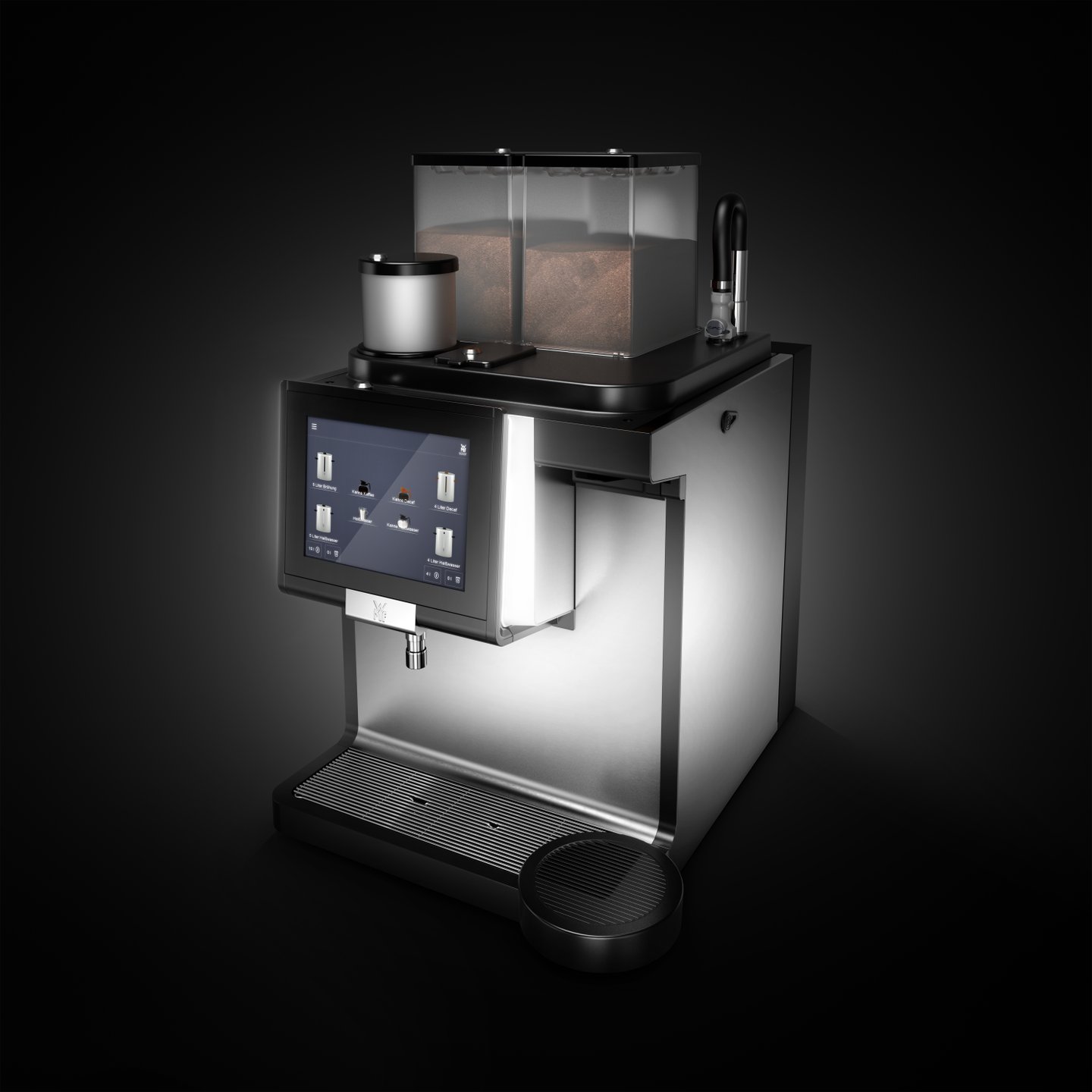

WMF 9000F GV

Quality and quantity go hand in hand in the WMF 9000F GV automatic filter coffee machine, making it your perfect partner in situations where large quantities of first-class coffee need to be produced and transported quickly. Despite its slim dimensions, this powerhouse produces up to 100 litres of filter coffee per hour.

HIGH VOLUME. HIGH QUALITY.

FEATURES

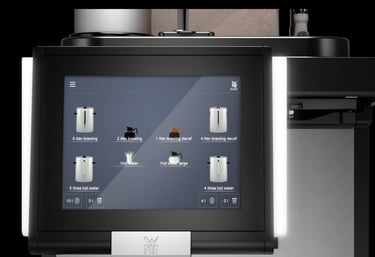

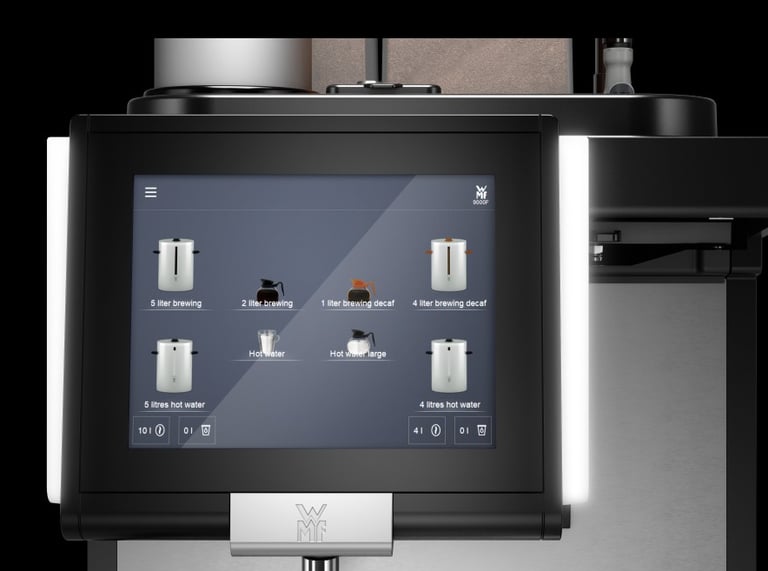

The 10” color touch display ensures effortless navigation with a structured menu, large beverage buttons, and a customizable toolbar for quick access to presets, enhancing daily operations efficiently.

Automatic brewing dispenses 1 to 5 liters into a heated external thermal container, with brewing quantities adjustable up to 5 liters based on the container's size.

INTUITIVE MENU SYSTEM

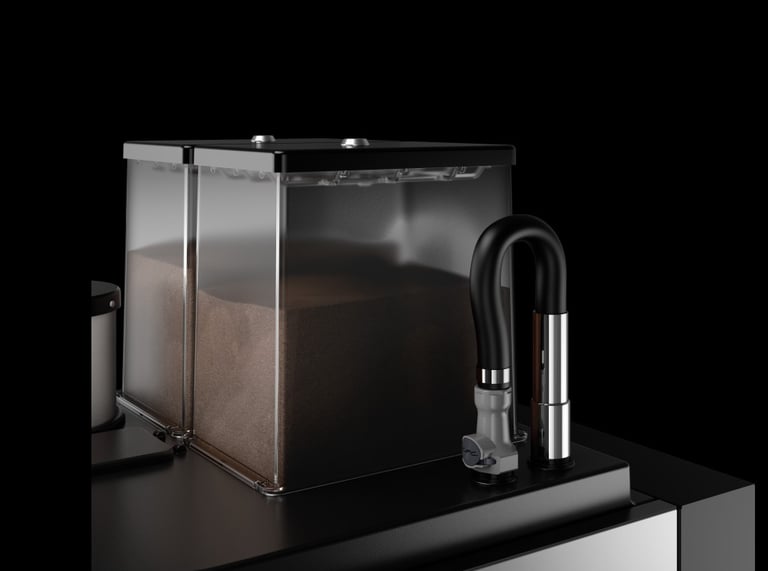

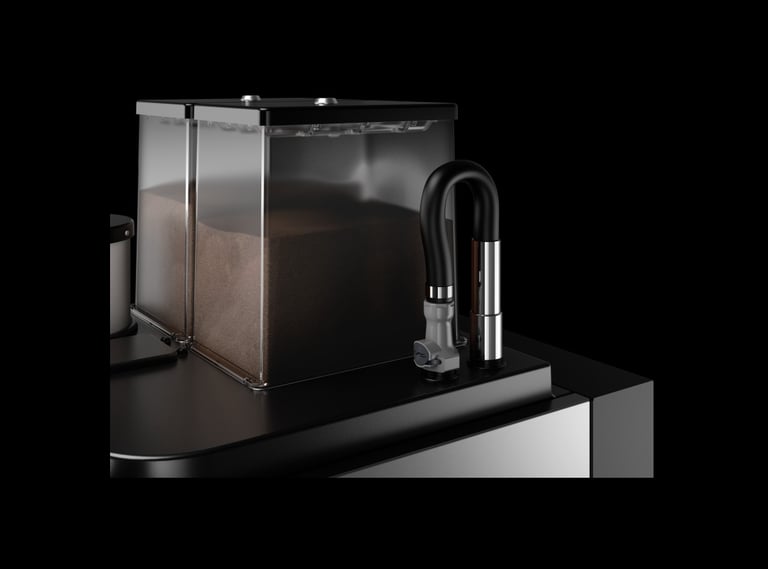

QUANTITY BREWING ARM

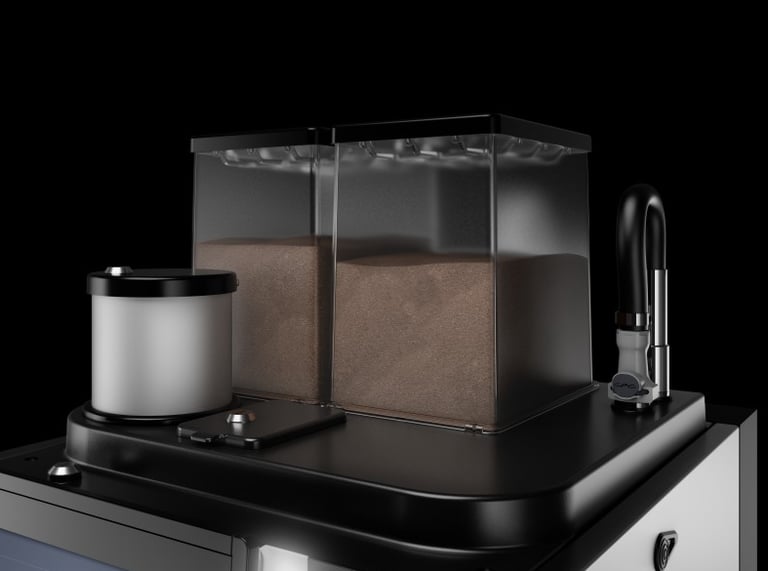

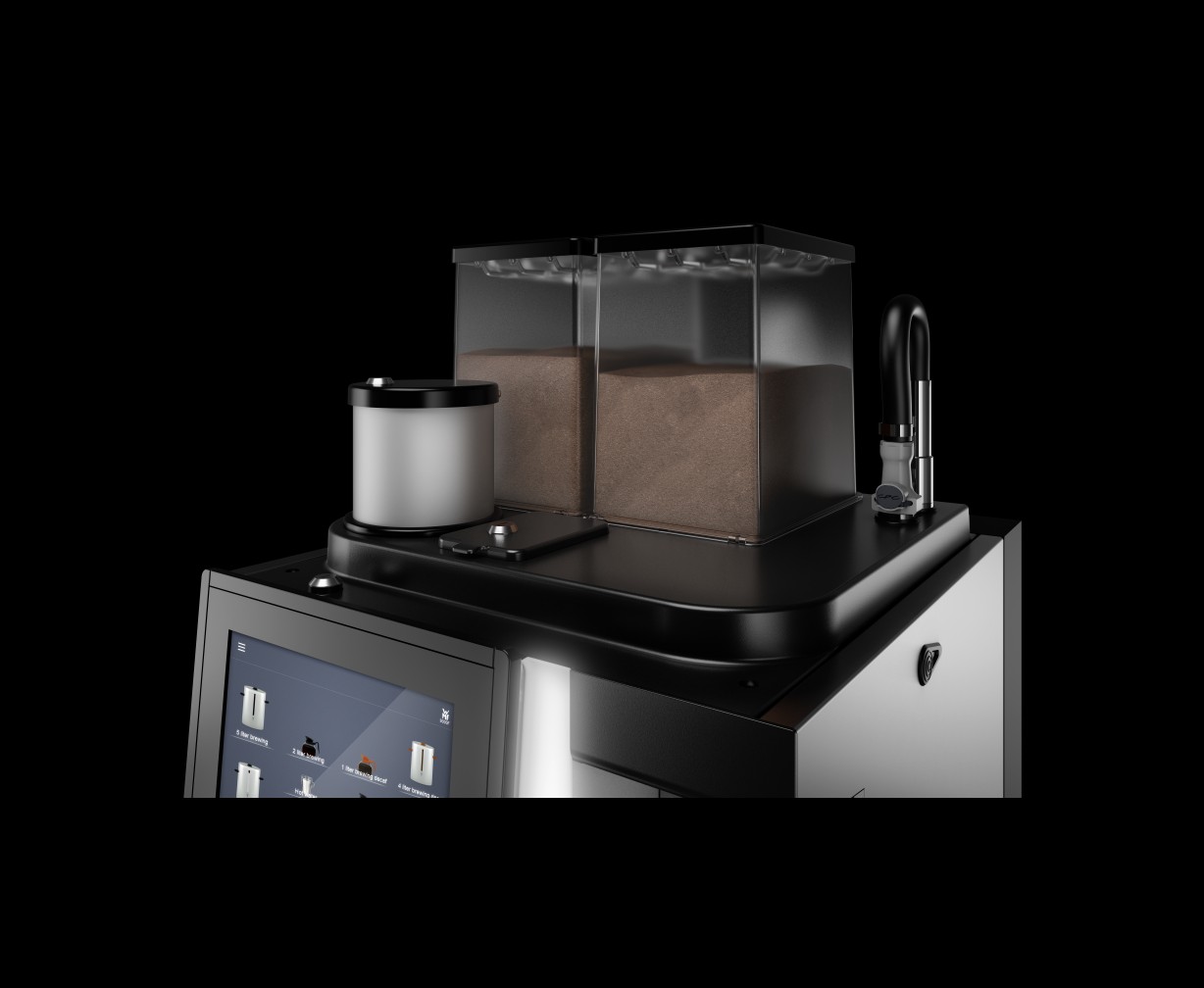

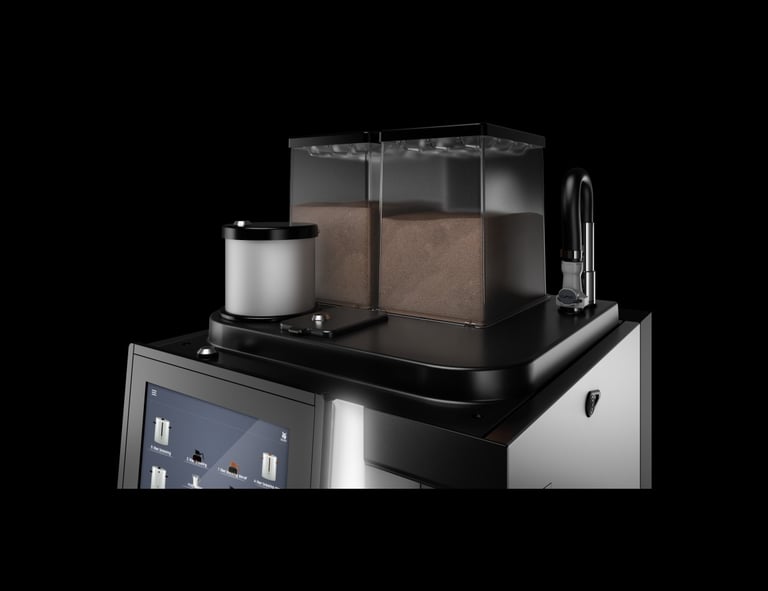

TWO GROUND COFFEE HOPPERS

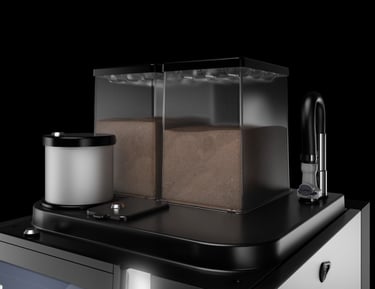

The two 2.5 kg hoppers allow offering two coffee types, such as regular and decaf, or doubling capacity for one type, providing convenience during peak times.

The pot brewing arm dispenses coffee into external pots or jugs, accommodating up to 2.8 liters and adjustable for pots up to 175 mm wide and 398 mm tall.

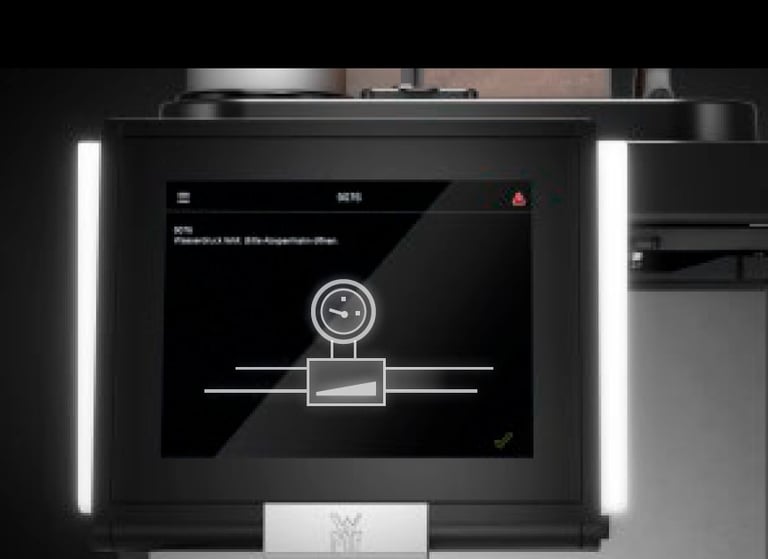

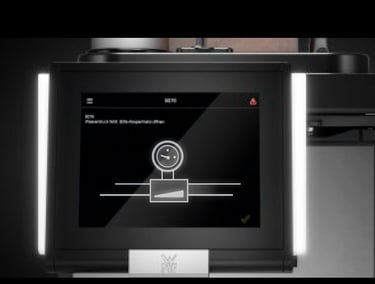

Pressure sensors monitor water inlet and brewing pressures to detect errors automatically, ensuring flawless coffee preparation and reliable brewing conditions

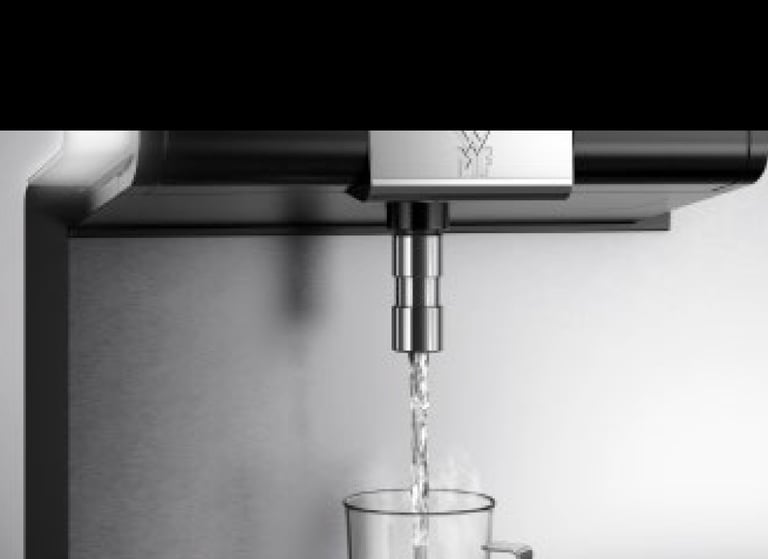

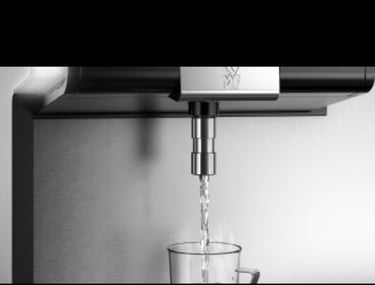

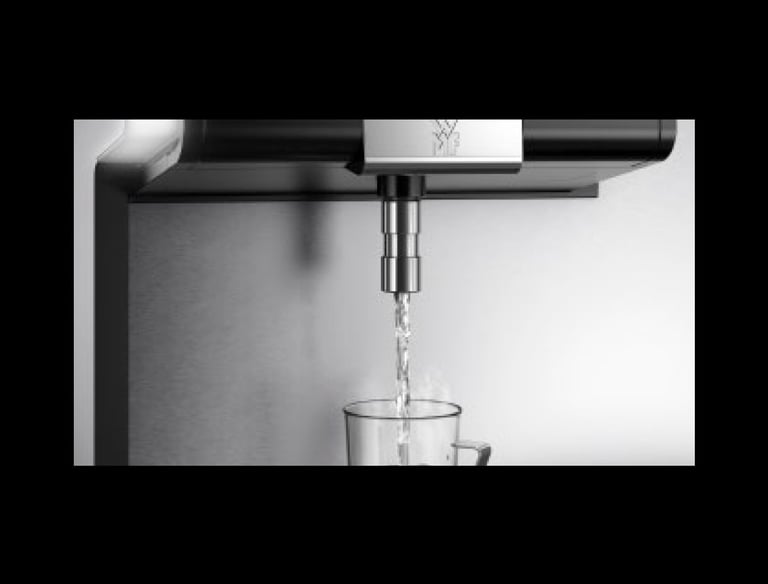

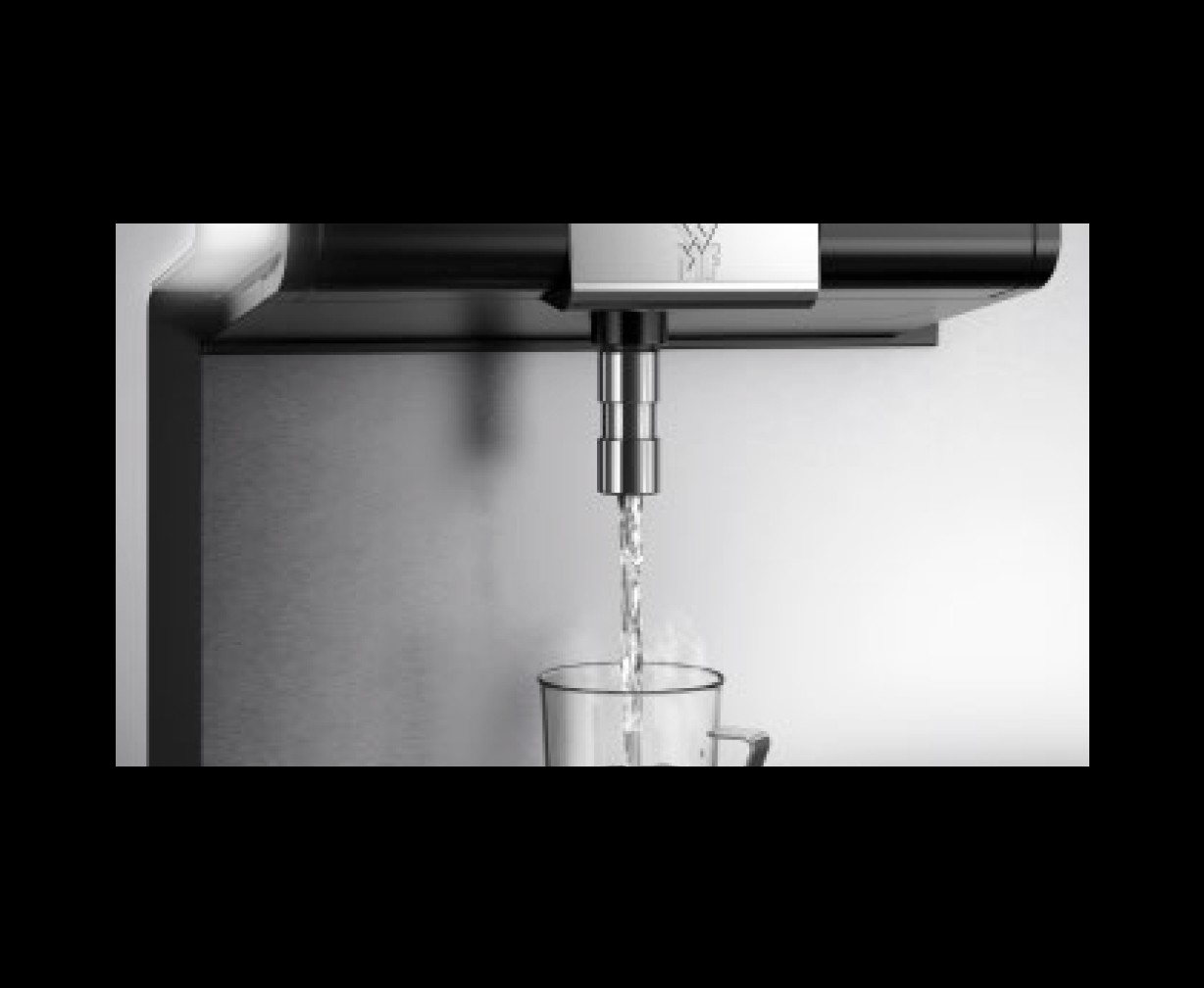

The spout below the display ensures efficient and user-friendly hot water dispensing, offering flexibility and speed, even for small quantities needed for tea or similar preparations.

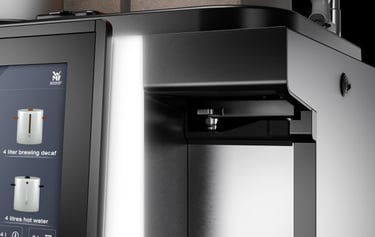

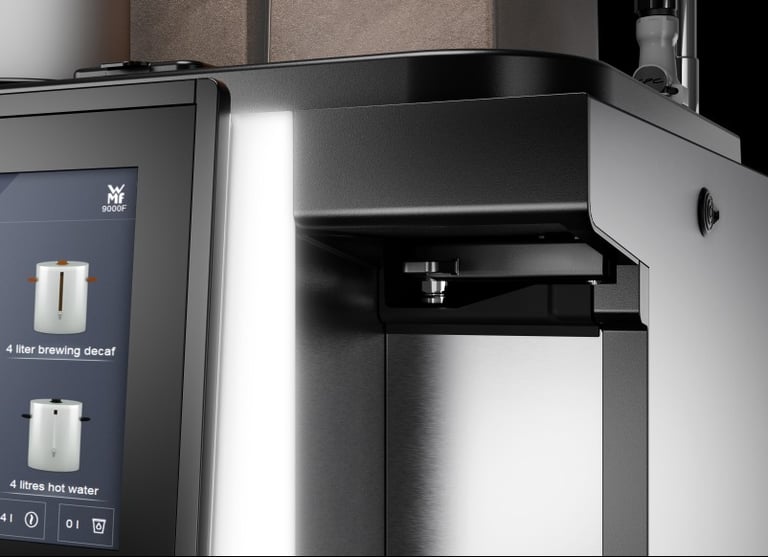

SWING-OUT POT BREWING ARM
DETECTION OF WATER PRESSURE ERRORS
HOT WATER OUTPUT

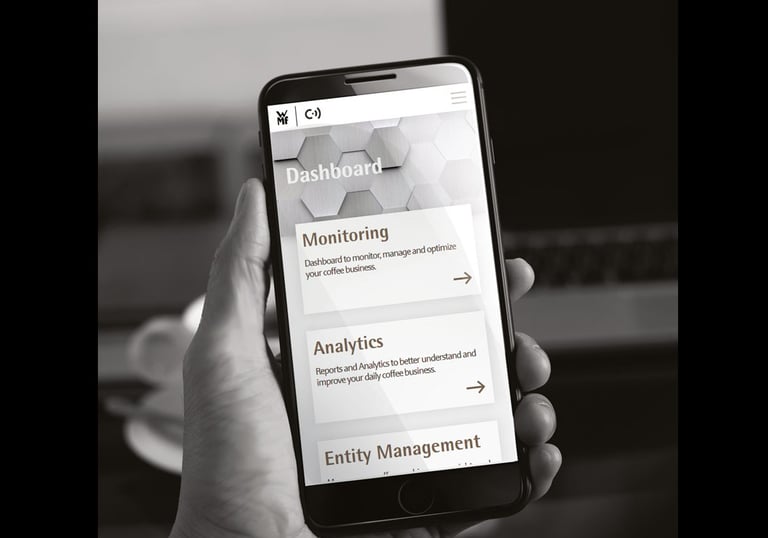

By collecting, analysing and processing data from your machine or sending information to your machine, WMF CoffeeConnect gives you the power to optimise processes, reduce service costs, and increase turnover.

WMF COFFEE CONNECT

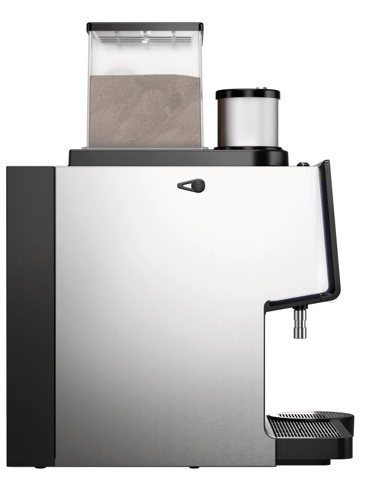

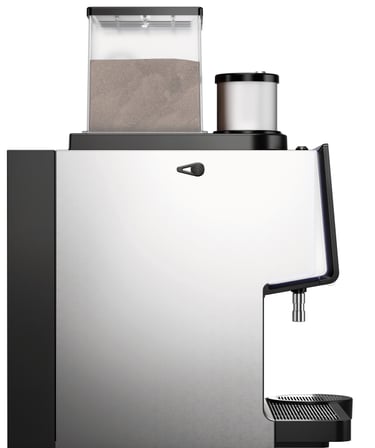

450 mm

605 mm

782 mm

TECHNICAL DATA

Display:

10” colour touch display

Beverage output:

100 l / hour

Nominal power rating / mains power connection:
  • 3/N/PE [380 - 410V/ 8.5 - 10.1 kW] or

  • 3/N/PE [380 - 410V/ 12.4 - 14.7 kW]

Water supply:

Fixed water connection with direct drainage

Coffee grounds disposal:

Grounds separator (add-ons) - 12 litres of ground coffee

Ground Coffee hopper:

2 * 2.5 kg, expandable to 3.8 kg

External dimensions (width / height / depth):
Features:

450/ 782/ 605 mm

  • Pot brewing

  • Quantity brewing

  • Automatic cleaning with granulate dispenser

  • LED illumination

Empty weight (depending on the model):

Approx. Approx. 65kg

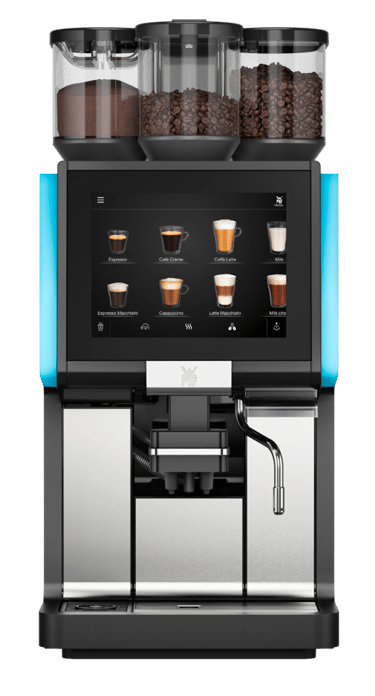

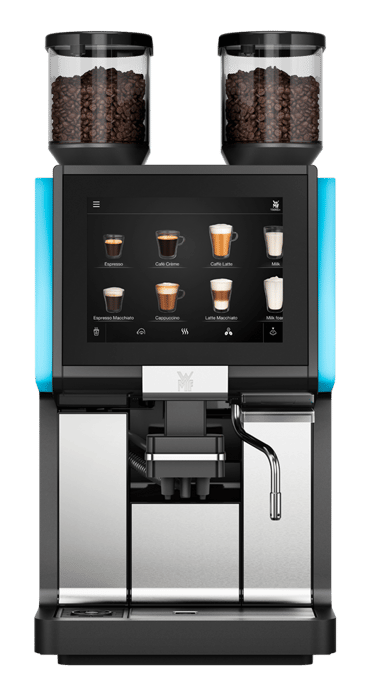

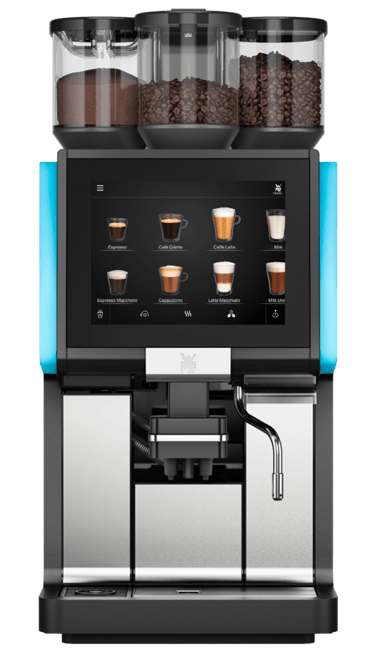

MODEL

  • 1/N/PE 230V/2,3kW

  • 4.5L water tank

  • No steam boiler

  • 1 x Bean hopper

  • 1 x Powder hopper

  • Hot water outlet on the left side

  • Click+Clean

  • SteamJet

03.1120.0311

03.1120.1212

03.1120.1311

03.1120.1312

  • 1/N/PE 230V/2,3kW

  • 4.5L water tank

  • Basic milk

  • 1 x Bean hopper

  • 1 x Powder hopper

  • Hot water outlet on the left side

  • Click+Clean

  • SteamJet

  • 1/N/PE 230V/2,3kW

  • 4.5L water tank

  • Basic milk

  • With steam wand

  • 2 x Bean hoppers

  • Hot water outlet on the left side

  • Click+Clean

  • SteamJet

  • 1/N/PE 230V/2,3kW

  • 4.5L water tank

  • Basic milk

  • With steam wand

  • 1 x Bean hopper

  • 1 x Powder hopper

  • Hot water outlet on the left side

  • Click+Clean

  • SteamJet

ACCESSORY EQUIPMENT

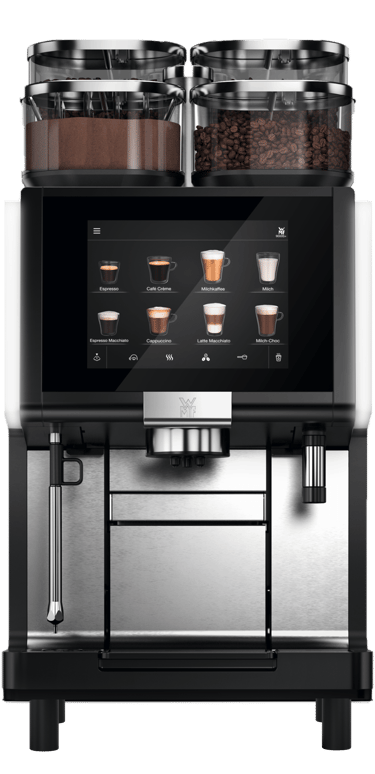

With feet

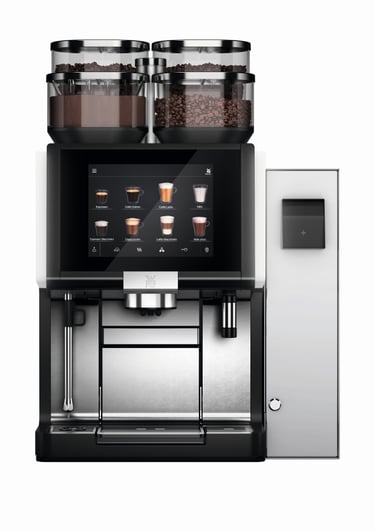

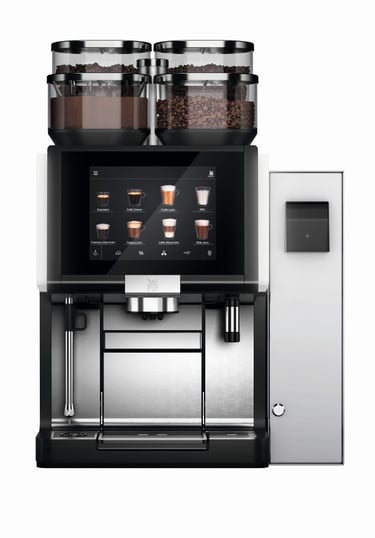

With payment system

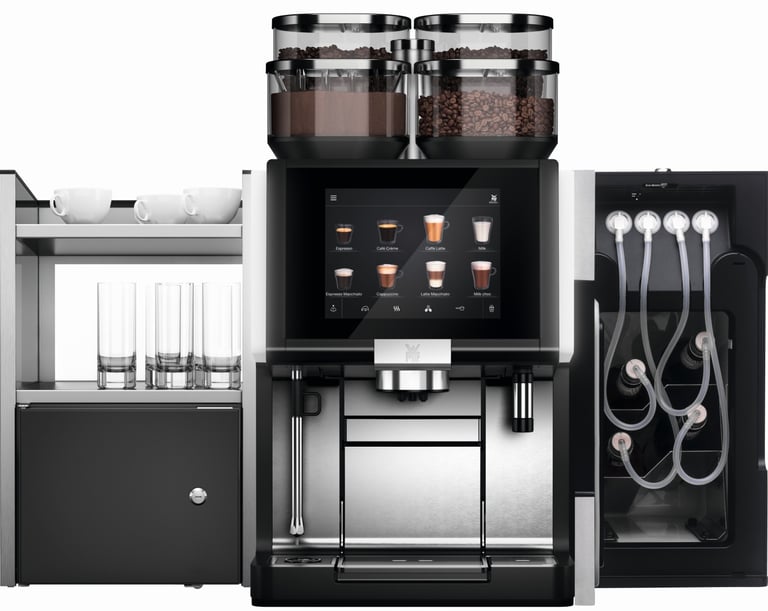

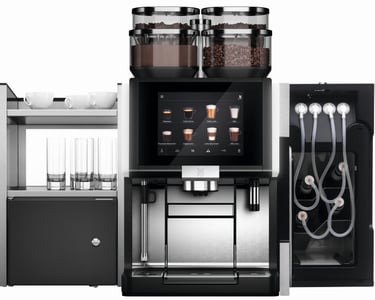

With cup and cool & syrup station

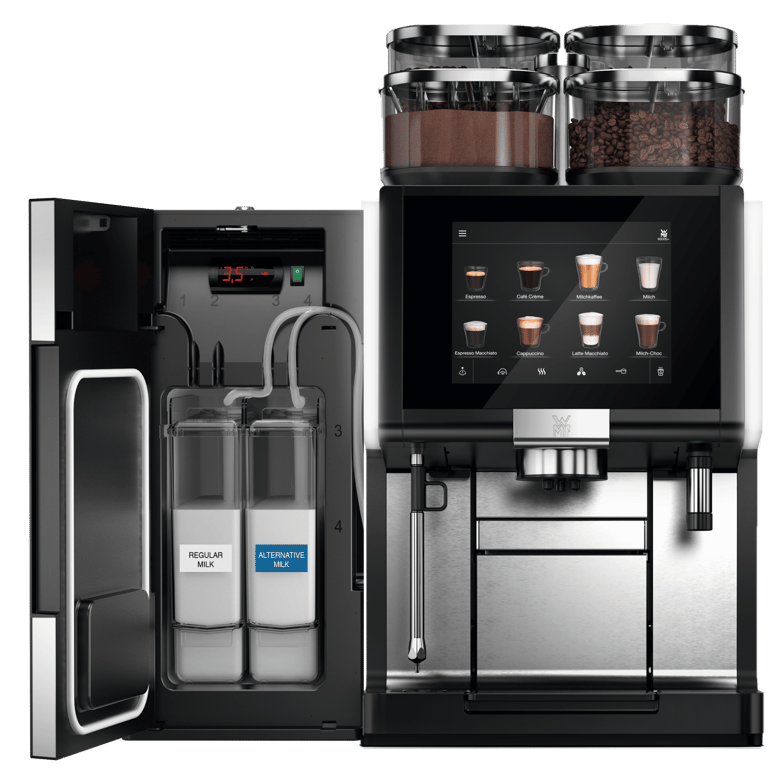

With 2-milk solution

ADD-ON KITS

  • 33.4240.5000 Spout for pot brewing arm

  • 33.1750.3000 Quantity spout 115 mm

  • 33.9885.5000 Quantity spout 166 mm

  • 33.9838.3000 Quantity spout 340 mm

  • 03.6699.3011 Set of feet 167 mm

  • 03.6299.0001 Thermal container 2.4 L

  • 03.6621.0001 Heated thermal container 20 L

  • 03.6641.0001 Heated thermal container 40 L

  • 03.9011.0002 Grounds separator

Add-on kits are available as separate purchase.
